Military-Detailed 38999 Series Ⅲ is a robust, high-performance, multi-pin, cylindrical connector series commonly used in aerospace, military, and industrial applications. This connector series features stainless steel passivated shells, a current rating of up to 20A, a voltage rating of up to 500V, and a variety of contact and shell material options. Detail-38999 Series Ⅲ connectors are designed to provide secure connections in hostile environments. These connectors are available as both plugs and receptacles, and are made with contact materials such as copper alloy and shell materials such as stainless steel.
| Product Attribute | Specifications |
|---|---|
| Shell Finish | Stainless Steel Passivated |
| Voltage Rating | 500V |
| Contact Material | Copper Alloy |
| Number of Contacts | 5 |
| Shell Size17 | 17 |
| Coupling Type | Threaded |
| Current Rating | 7.5 A |
| Insert Arrangement | Straight Or Right Angle |
| Contact Type | Crimp |
| Contact Finish | Gold |

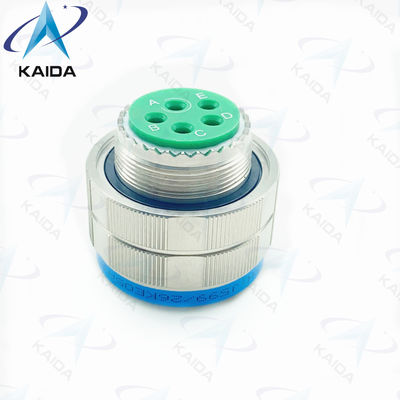

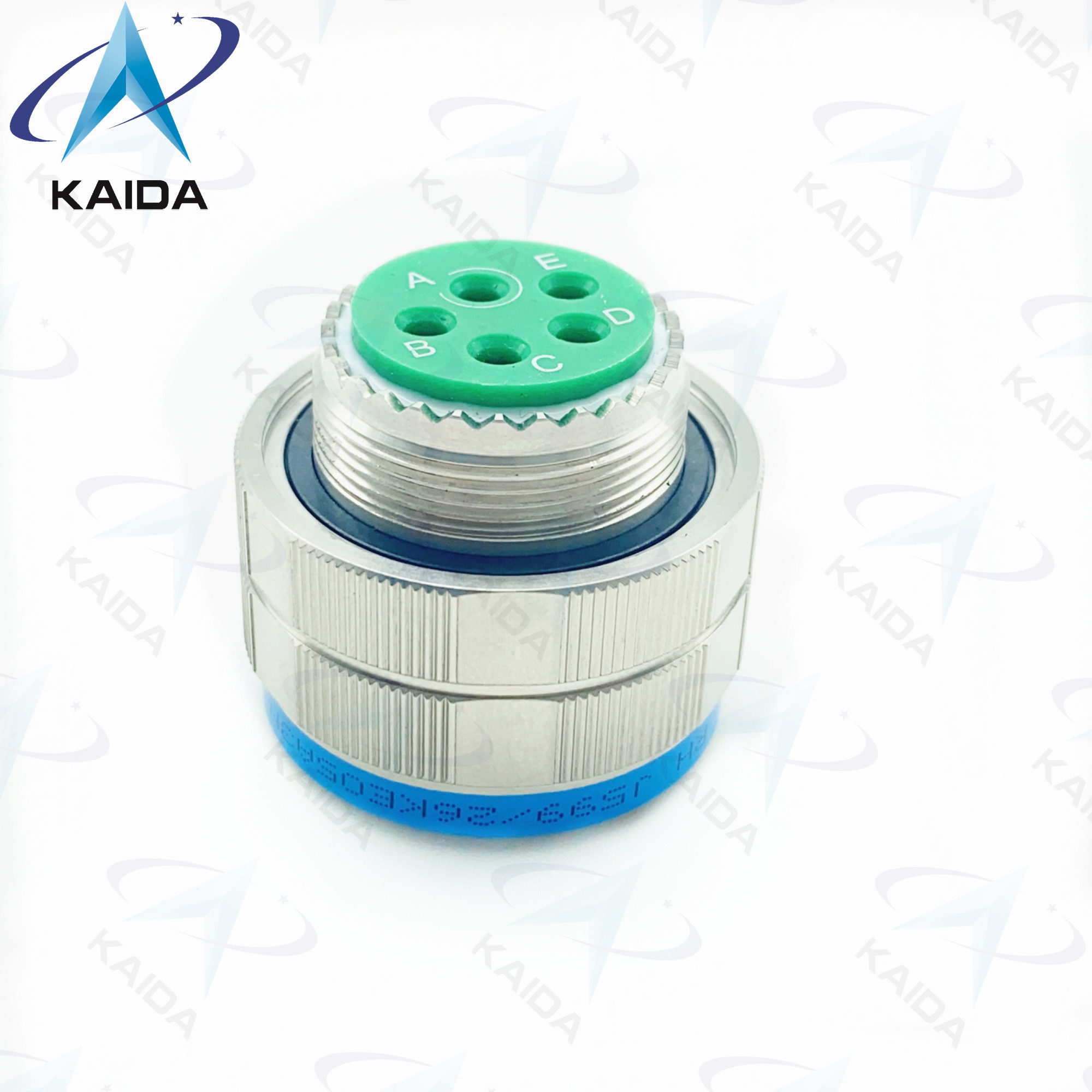

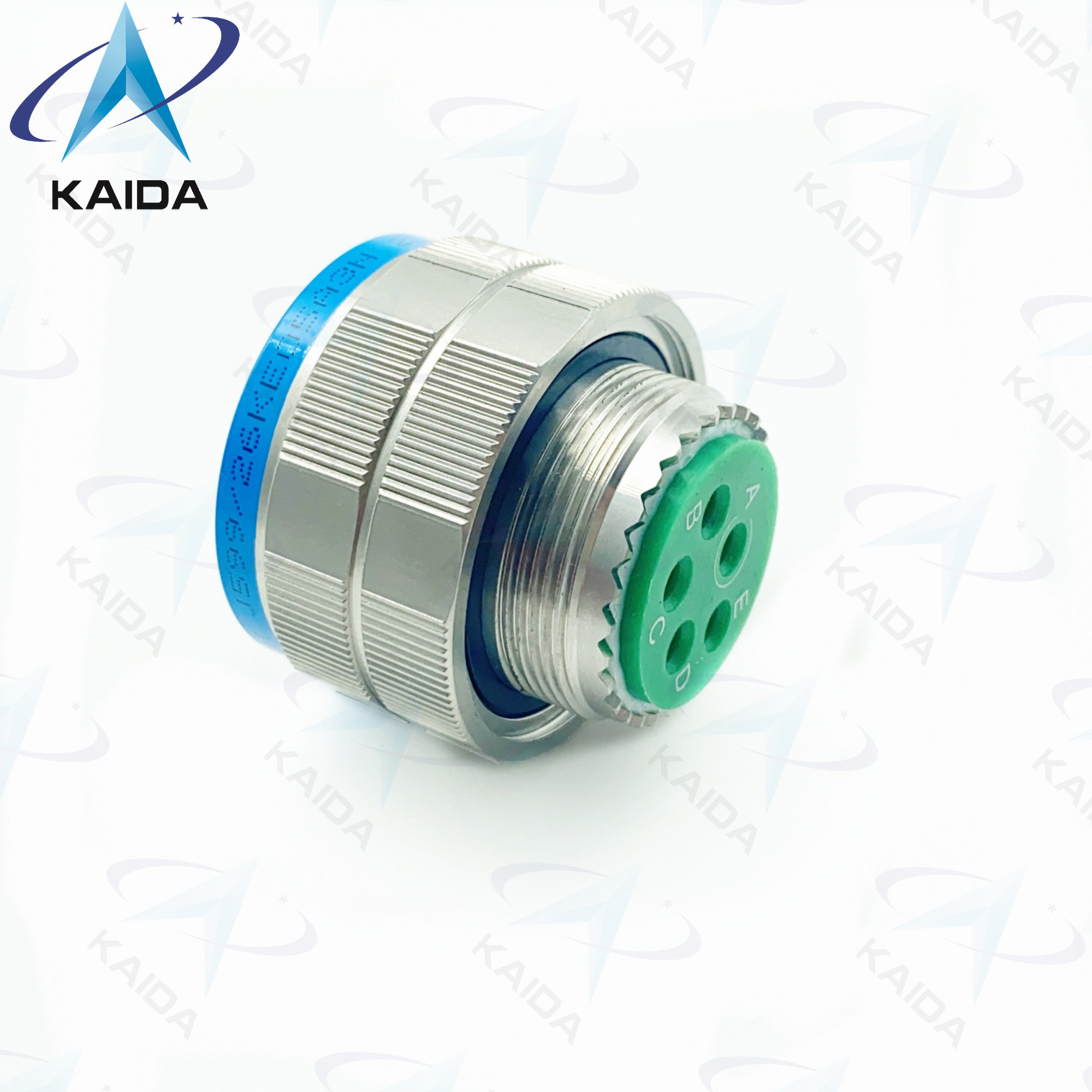

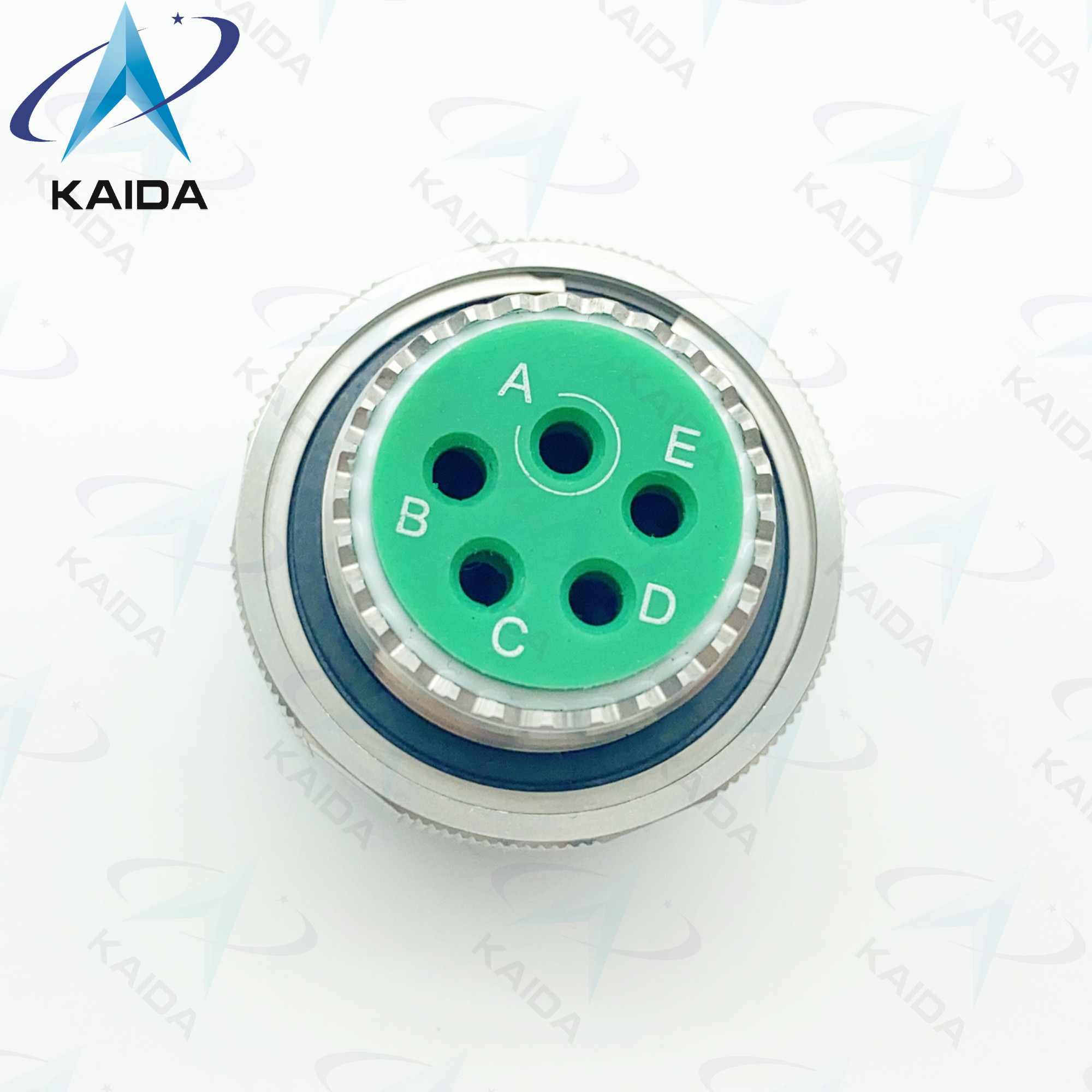

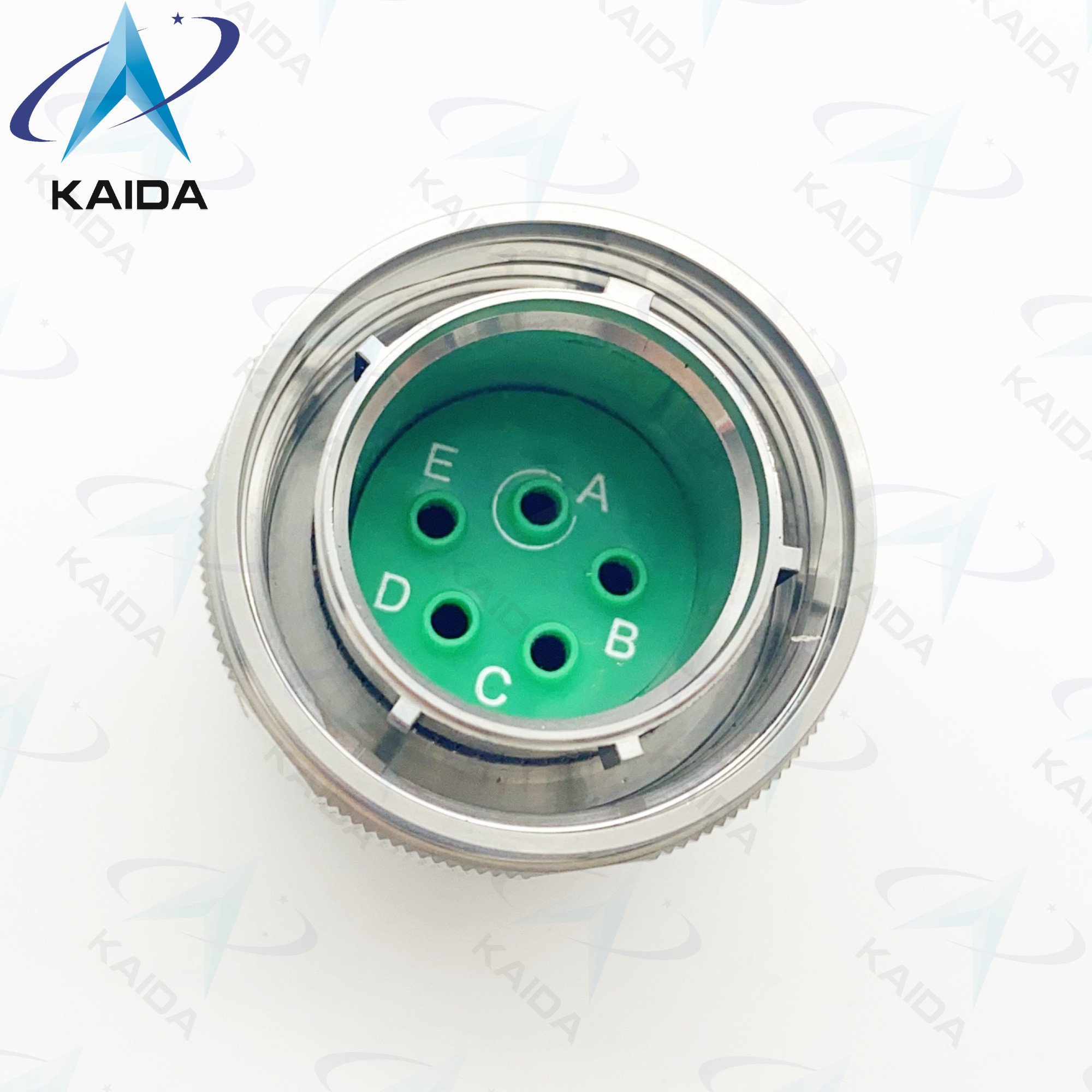

Product Pictures
The Military-Detail 38999 Series Ⅲ (MIL-DTL-38999 Series Ⅲ) manufactured by KAIDA is a type of Detailed-38999 Series Ⅲ Connectors, with model number D38999/KE05PN, originating from China. It has an operating temperature range of -55°C To +125°C, and features a Plug connector type with a voltage rating of 500V. It offers a Straight Or Right Angle insert arrangement, and a Crimp contact type.
The KAIDA D38999/KE05PN MIL-DTL-38999 Series Ⅲ Connectors offer superior performance and reliability, due to its China origin, and are designed to withstand extreme temperature levels, from -55°C To +125°C. Furthermore, the MIL-DTL-38999 Series Ⅲ Connectors are available in a Plug connector type, and feature a 500V voltage rating, a Straight Or Right Angle insert arrangement, and a Crimp contact type.
MIL-DTL-38999 Series Ⅲ technical support and service includes:
MIL-DTL-38999 Series Ⅲ connectors are shipped in sturdy boxes or other containers that will protect them from shock, vibration, and other damaging environmental conditions. The packaging should also be designed to keep the connectors dry and free from contaminants such as dust and dirt.
The packaging should be marked with the manufacturer's name, the MIL-DTL-38999 Series Ⅲ connector part number, and the quantity of connectors contained in the box or container.
The containers should be strong enough to withstand the normal handling and shipping conditions encountered in transit.
All MIL-DTL-38999 Series Ⅲ connectors should be inspected upon arrival to ensure that the connectors arrive in good condition.
```
