MIL-DTL-38999 Series Ⅲ is a military-grade connector designed for a wide range of demanding and harsh environment applications. It features a maximum voltage rating of 500V, 22 contacts, operating temperature ranging from -55°C to +125°C, crimp contact type, and a current rating of 7A. MIL-DTL-38999 Series Ⅲ connectors are proven to meet the highest standards in terms of durability and reliability, making them ideal for use in military, aerospace, and industrial applications.
| Attribute | Value |
|---|---|
| Product | Military-Detail-38999 Series Ⅲ Plug |
| Coupling Type | Threaded |
| Current Rating | 7 A |
| Contact Type | Crimp |
| Number of Contacts | 22 |
| Shell Finish | Electroless Nickel |
| Contact Material | Copper Alloy |
| Operating Temperature | -55°C To +125°C |
| Voltage Rating | 500V |
| Shell Size | 13 |
| Contact Finish | Gold |

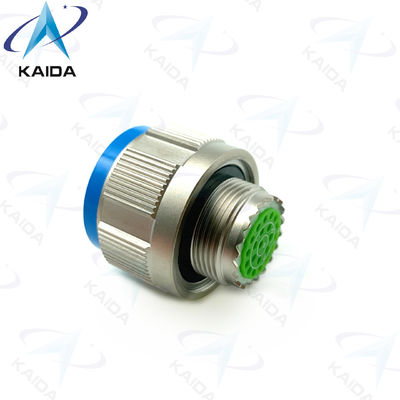

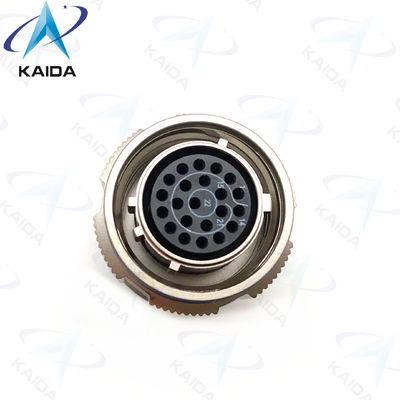

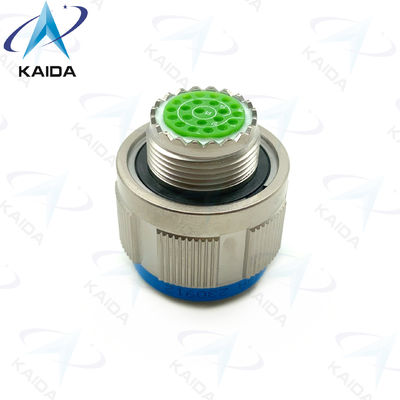

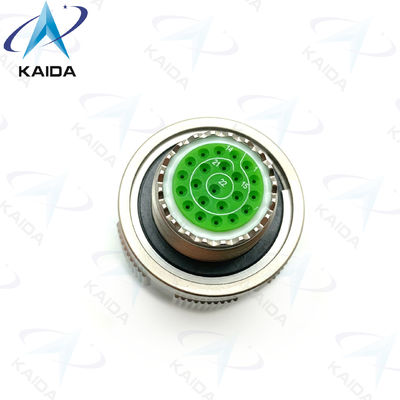

Product Pictures
The Military-Detailed 38999 Series Ⅲ from KAIDA, model number D38999/20FG35PE, is a high-quality, made in China connector with Threaded coupling type and Plug connector type. It has a current rating of 7A and can be used in a wide range of operating temperatures, from -55°C To +125°C. This series comprises of 22 contacts. It is a reliable and cost-effective solution for many military and aerospace applications.
KAIDA in China offers custom services for Military Detailed-38999 Series Ⅲ, Model D38999/20FG35PE. This connector is characterized by 22 contacts, 7 A current rating, electroless nickel shell finish, aluminum shell material, and plug type.
MIL-DTL-38999 Series Ⅲ provides technical support and services, including:
The MIL-DTL-38999 Series Ⅲ product is packaged and shipped according to the following specifications:
