Secure MIL-DTL-26482 Series 1 Connector MS3114E8-4S 4 Female Pins

5 PCS
MOQ
20$-50$
Price
Secure MIL-DTL-26482 Series 1 Connector MS3114E8-4S 4 Female Pins
Features Gallery Product Description Request A Quote
Features
Specifications
Gender: Jam Nut Receptacle
Contact Termination: Crimp
Product Name: MIL-DTL-26482 Series I
Shell Material: Aluminum Alloy
Voltage Rating: 500V
Shell Size: 08
Coupling Nut Material: Aluminum Alloy
Shell Finish: Cadmium Olive Drab
Highlight:

Secure Reliable MIL-DTL-26482 Series 1

,

MIL-DTL-26482 Series 1 Connector

,

MS3114E8-4S 4 Female Pins

Basic Infomation
Place of Origin: China
Brand Name: KAIDA
Certification: AS9001&GJB9001
Model Number: MS3114E8-4S
Payment & Shipping Terms
Packaging Details: Standard Export Package
Delivery Time: 1-4 Weeks
Payment Terms: L/C, T/T
Supply Ability: 100000
Product Description

Secure and Reliable MIL-DTL-26482 Series I Connector.MS3114E8-4S.4 Female Pins. Jam Nut Receptacle.Olive Green Cadmium

Part Number:MS3114E8-4S

Product Description:

MIL-DTL-26482 Series I is a miniature connector designed to meet the rigorous requirements of military applications. It features a jam nut receptacle with an olive green cadmium finish and an aluminum alloy coupling nut. This Series I connector is available in shell size 08 and is designed to provide superior environmental protection and reliable electrical performance. The MIL-DTL-26482 Series I is ideal for applications in harsh and extreme environments, ensuring secure and dependable connections.



Secure MIL-DTL-26482 Series 1 Connector MS3114E8-4S 4 Female Pins 0

Features:

  • Product Name: MIL-DTL-26482 Series Ⅰ
  • Coupling Nut Material: Aluminum Alloy
  • Number of Contacts: 4
  • Shell Finish: Cadmium Olive Drab
  • Gender: Receptacle
  • Jam Nut Receptacle
  • Current Rating: 7.5 A


Technical Parameters:

Description Specification
Product Name MIL-DTL-26482 Series Ⅰ
Shell Size 08
Gender Receptacle
Number of Contacts 4
Shell Material Aluminum Alloy
Shell Finish Cadmium Olive Drab
Voltage Rating 500V
Coupling Nut Material Aluminum Alloy
Contact Termination Crimp
Current Rating 7.5 A



Product Pictures

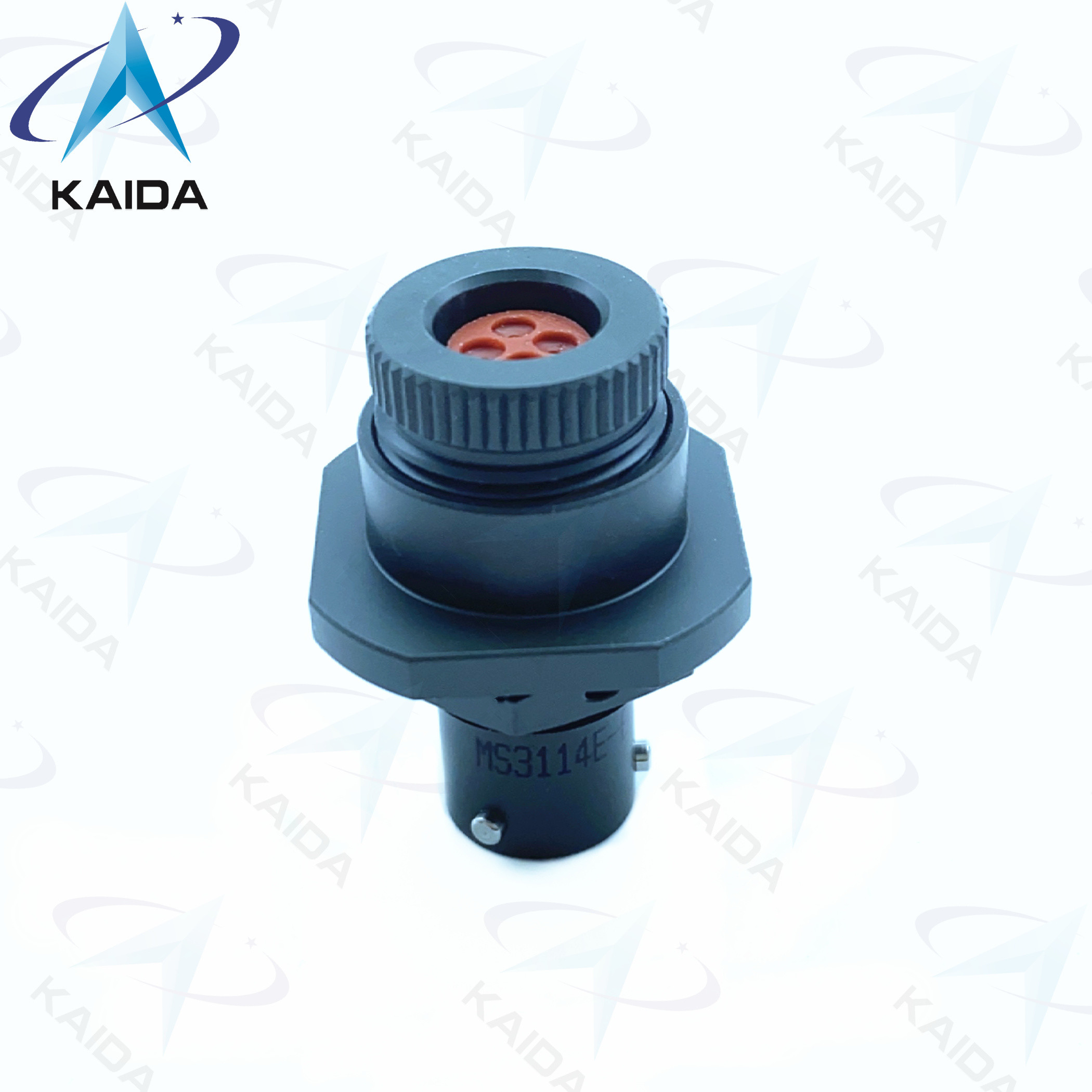

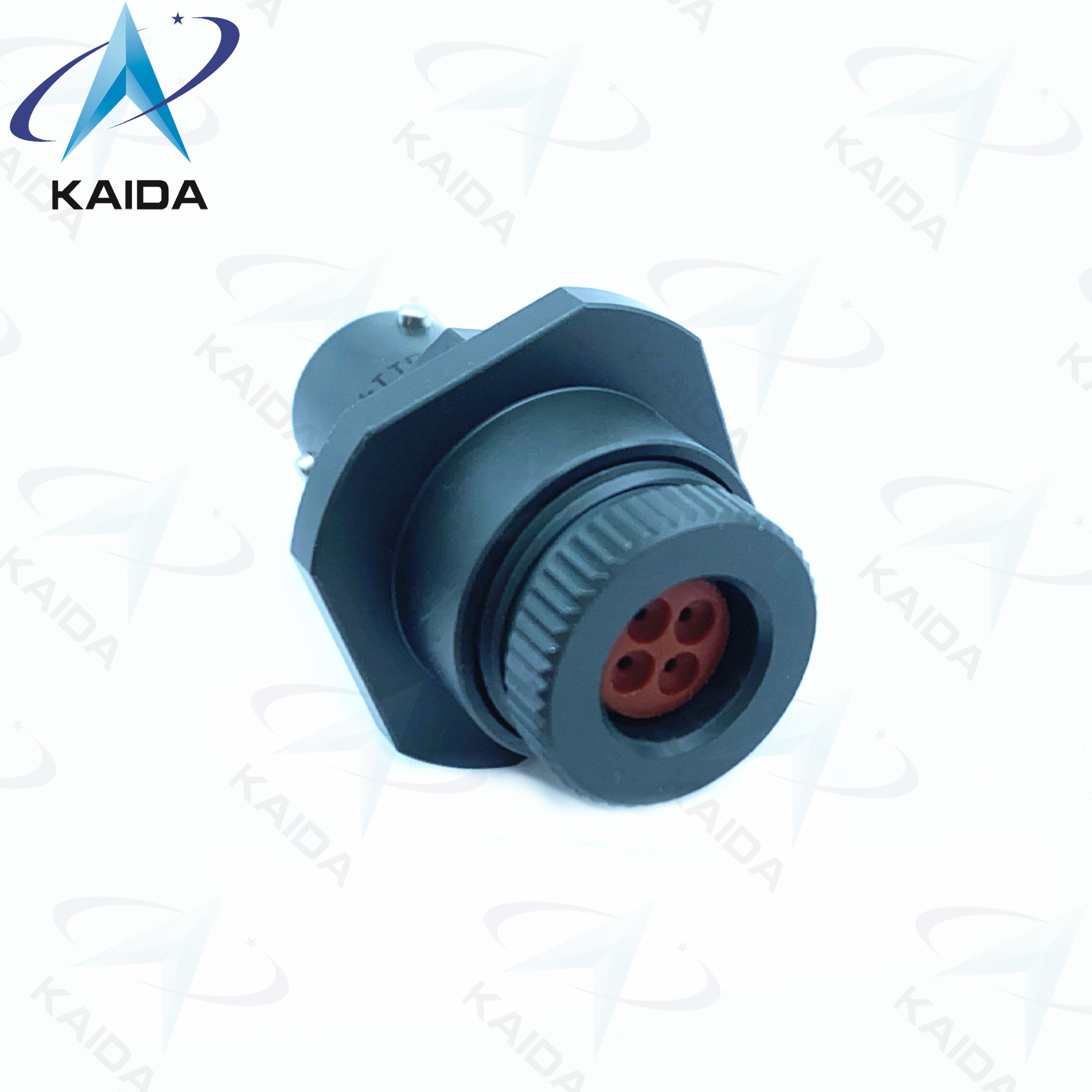

Secure MIL-DTL-26482 Series 1 Connector MS3114E8-4S 4 Female Pins 1Secure MIL-DTL-26482 Series 1 Connector MS3114E8-4S 4 Female Pins 2

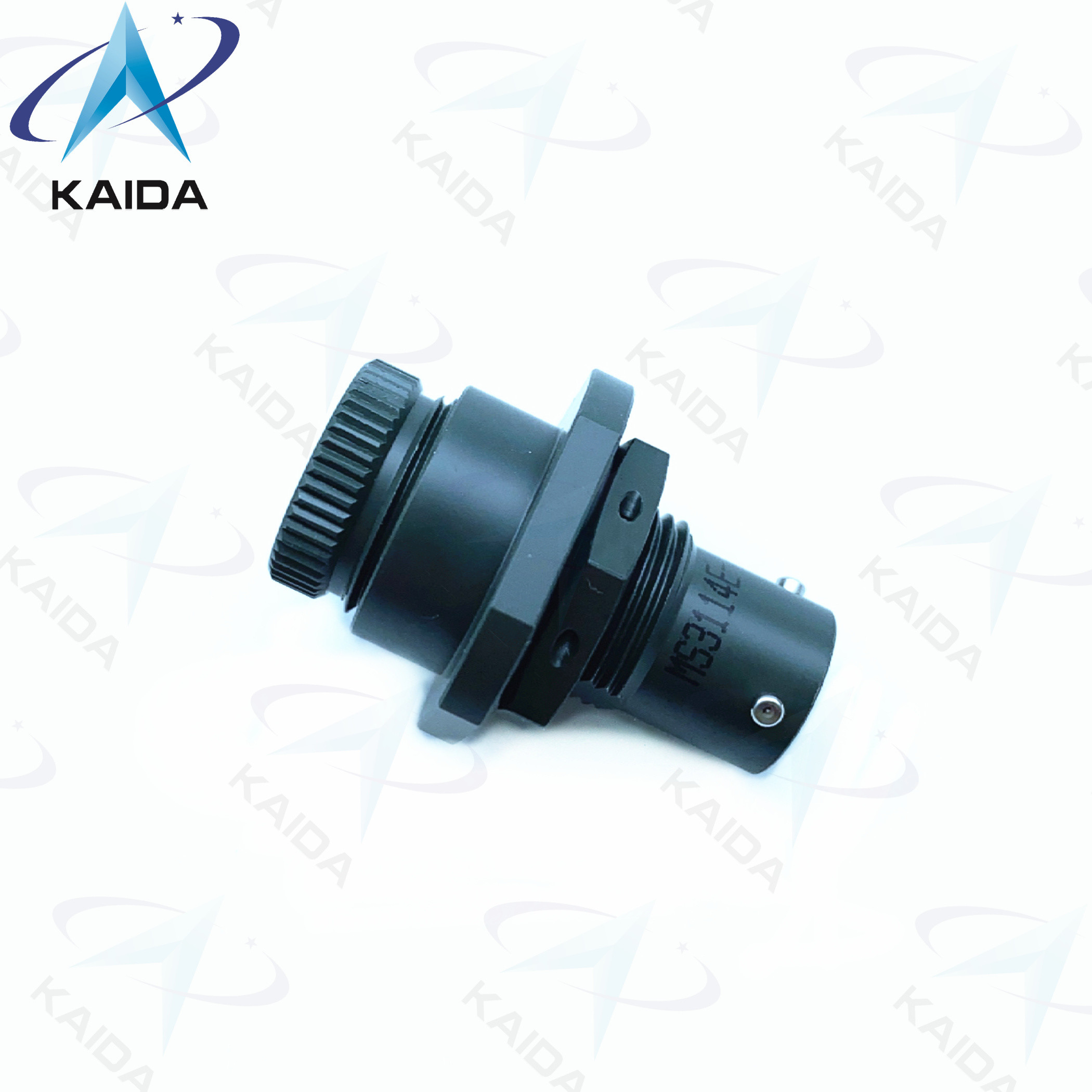

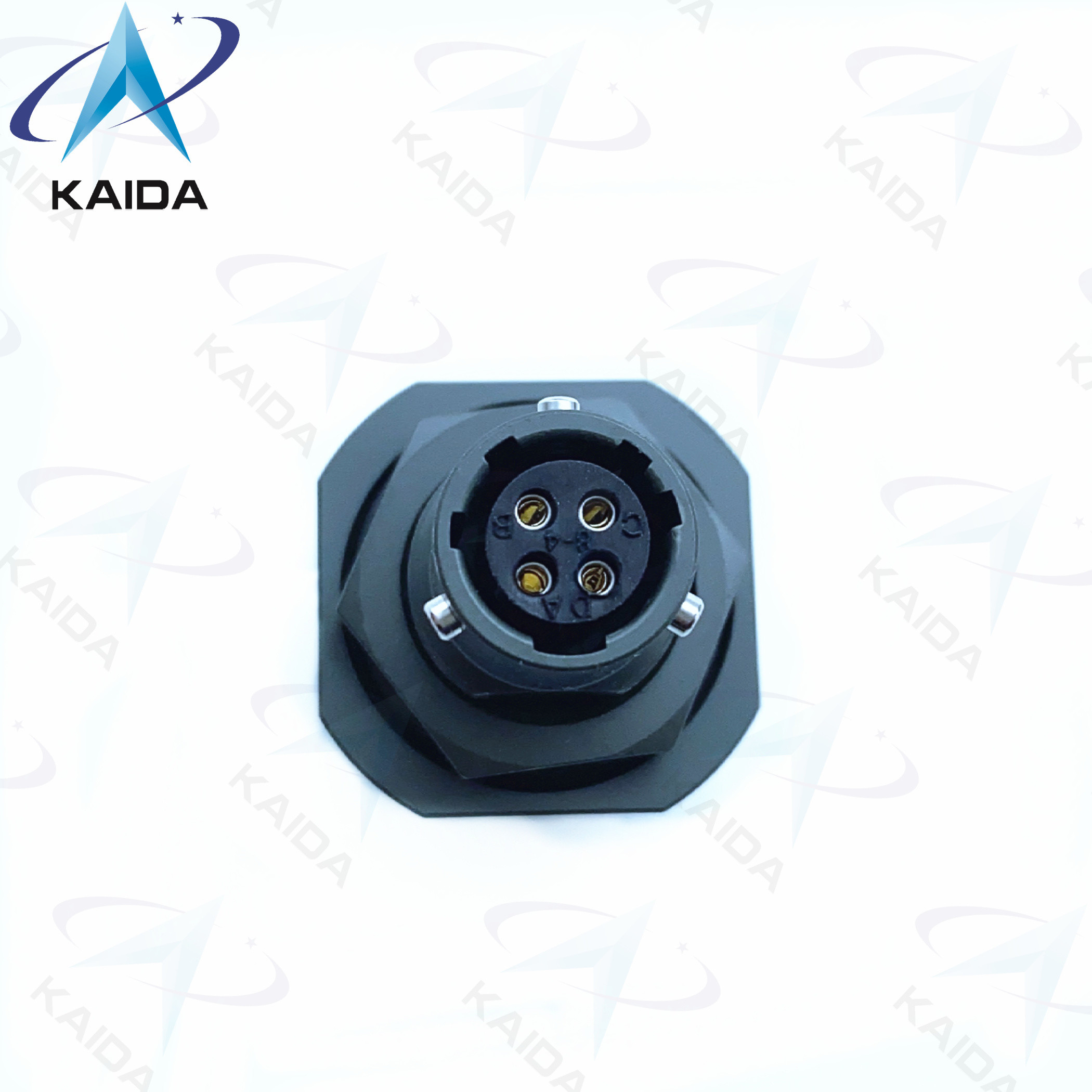

Secure MIL-DTL-26482 Series 1 Connector MS3114E8-4S 4 Female Pins 3                                                         Secure MIL-DTL-26482 Series 1 Connector MS3114E8-4S 4 Female Pins 4



Applications:

KAIDA MS3114E8-4S Receptacle Connector from China is an ideal product for a wide range of applications. It is made of high quality aluminum alloy with olive drab cadmium, ensuring its superior strength and durability. This MIL-DTL-26482 Series I connector is specifically designed to provide a secure connection with a voltage rating of 500V. It is equipped with crimp contact termination and meets the high-performance standards of the industry. This reliable receptacle connector is perfect for rugged and harsh environments and is guaranteed to provide a strong and reliable connection.



Customization:

KAIDA MS3114E8-4S Jam Nut Receptacle, MIL-DTL-26482 Series Ⅰ
  • Place of Origin: China
  • Number of Contacts: 4
  • Contact Termination: Crimp
  • Current Rating: 7.5 A
  • Coupling Nut Material: Aluminum Alloy
  • Shell Material: Aluminum Alloy
  • Olive Drab cadmium plated per MIL-DTL-13924


Support and Services:

MIL-DTL-26482 Series Ⅰ Technical Support and Service
  • On-site personnel training on installation, operation, and maintenance
  • 24/7 technical support over the phone, email, and web
  • On-site troubleshooting and repair
  • Access to technical documents and software updates
  • Factory-certified parts and components


Packing and Shipping:

MIL-DTL-26482 Series Ⅰ Packaging and Shipping:

  • Each product must be packaged in accordance with MIL-STD-2073-1.
  • The product must be shipped in accordance with MIL-STD-129P.
  • The product must be labeled with the MIL-STD-129P labeling requirements.
  • The product must be shipped in accordance with MIL-STD-130U.
  • The product must be labeled with the MIL-STD-130U marking requirements.


FAQ:

Q: What is MIL-DTL-26482 Series Ⅰ?
A: MIL-DTL-26482 Series Ⅰ is a waterproof and dustproof circular connector, manufactured by KAIDA and model MS3114E8-4S. It is made in China.
Q: What are the features of MIL-DTL-26482 Series Ⅰ?
A: MIL-DTL-26482 Series Ⅰ has a shell made from aluminium and is thermoplastic elastomer sealed, which makes it resistant to dust and water. It also has an operating temperature range of -55℃ to +125℃ and a current rating up to 6A.
Q: What is the application of MIL-DTL-26482 Series Ⅰ?
A: MIL-DTL-26482 Series Ⅰ is a widely used in military, aerospace, communications, medical, industrial and other fields.
Q: What is the advantage of MIL-DTL-26482 Series Ⅰ?
A: MIL-DTL-26482 Series Ⅰ has a reliable connection, good electrical performance and high durability.
Q: What is the certification of MIL-DTL-26482 Series Ⅰ?
A: MIL-DTL-26482 Series Ⅰ has obtained UL certification.

MIL-C-26482 Series 1 Datasheet.pdf
