Circular MIL-DTL-26482 Connector .Olive Drab Cadmium Plating.MS3470W14-4SW.Narrow Flange Receptacle.
MIL-DTL-26482 Series Ⅱ is a narrow flange receptacle designed to meet the requirements of MIL-DTL-26482. It is available in MS3470 and MS3470W14-4SW types, and features an operating temperature range of -55°C to +125°C. This series is designed with a receptacle gender and an olive green cadmium finish, and has a current rating of 7.5A. With its high-performance design and reliable connection, MIL-DTL-26482 Series Ⅱ is ideal for use in many military, aerospace, and industrial applications.
| Attributes | Values |
|---|---|
| Product Name | MIL-DTL-26482 Series Ⅱ |
| Contact Type | Crimp |
| Operating Temperature | -55°C To +125°C |
| Voltage Rating | 500V |
| Type | Narrow Flange Receptacle |
| Finish | Olive Drab Cadmium Plated |
| Contact Finish | Gold |
| Gender | Receptacle |
| Number of Contacts | 19 |
| Connector Type | Circular |

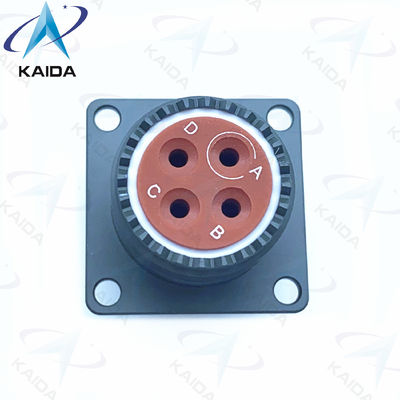

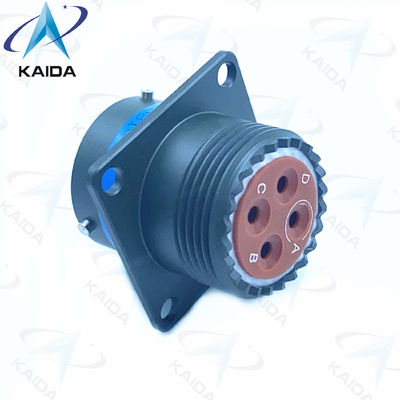

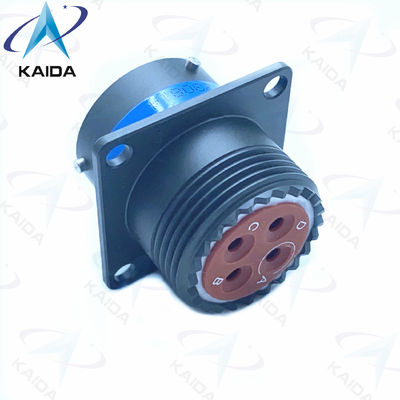

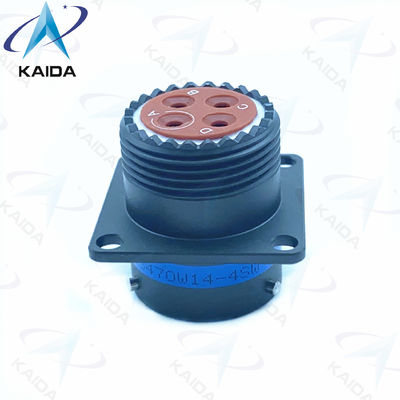

Product Pictures
The MS3470, MIL-DTL-26482 Series Ⅱ connector, manufactured by KAIDA, is a narrow flange receptacle connector. It has a current rating of 7.5A and a voltage rating of 500V. The contact finish is gold and it is a receptacle gender connector. This connector is ideal for applications that require a high level of security and reliability. It is suitable for high-voltage, high-current applications such as aerospace, military, medical, industrial, and automotive industries. The connector is available with a variety of mounting options to suit different installation environments.
The MS3470 MIL-DTL-26482 Series Ⅱ connector offers outstanding electrical and mechanical performance. It is designed to provide a secure, reliable connection between two devices. The connector is RoHS compliant and meets the most stringent safety and environmental standards. It is perfect for applications where space is limited, and where a durable, reliable product is needed.
The MS3470 MIL-DTL-26482 Series Ⅱ connector from KAIDA is an excellent choice for a variety of applications. It is reliable, robust, and cost-effective, making it the ideal connector for any application.
MIL-DTL-26482 Series Ⅱ Technical Support and Services include:
The MIL-DTL-26482 Series Ⅱ products are packaged in accordance with the requirements of MIL-DTL-26482 Series II. The product is shipped in sealed containers and wrapped in moisture-proof wrapping. The packaging and shipping materials are designed to protect the product from damage during transit.
A1: MIL-DTL-26482 Series Ⅱ is a standard for circular connectors used in aerospace and defense industries, developed by U.S. military and adopted by NATO. The standard is designed to withstand severe environmental conditions.
A2: The brand is KAIDA and the model number is MS3470W14-4SW.
A3: MIL-DTL-26482 Series Ⅱ is produced in China.
A4: MIL-DTL-26482 Series Ⅱ has a robust design and is equipped with ruggedized contacts, seals, and shells that make it suitable for extreme environmental conditions. It is also resistant to shock, vibration, and moisture.
A5: MIL-DTL-26482 Series Ⅱ is made of copper alloy, zinc alloy, and PBT.
